产品说明
■可制造的材质是AF510和AF810
■标准长度是310mm和330mm，也可根据需求制造比标准长度短的圆棒

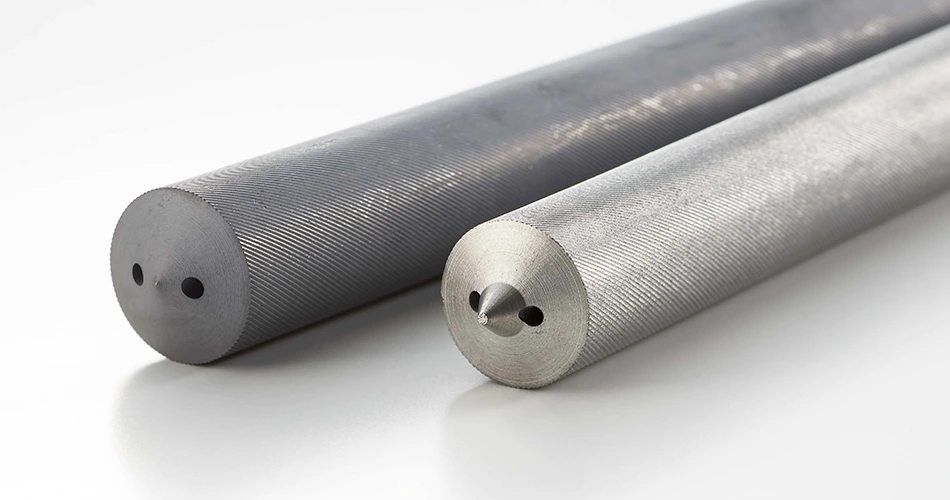

■外经为5.6以上的圆棒可以加工先端角和 中心轴等
■不加工段差
外径（沟顶径，沟底径）

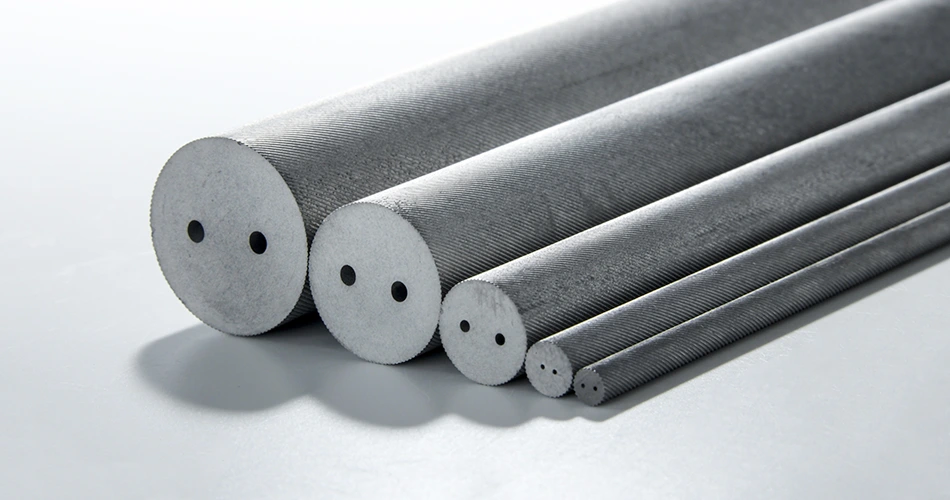

油孔素材在制造工程中外周会产生螺旋状的沟槽。沟顶径和沟底径就是素材横断面螺旋状沟的顶部和沟的底部的直径。
形狀
尺寸
■油孔数：2
■螺旋角度：15°
| 油孔数 | 螺旋角度 | 外径φD ※1 | 导程范围 | 油孔径φｄ | 油孔距 ａ | 材质 | 型号 | |||
| 沟顶径 | 沟底径 | AF 510 |
AF 810 |
L=310 | L=330 | |||||
| 2 | 15° | 5.6 | 5.25 | 54.8 ～ 63.0 | 0.71 ±0.1 | 2.5 0/-0.3 | ○ | AR1H056310 | AR1H056330 | |
| 6.6 | 6.25 | 65.7 ～ 75.6 | 0.83 ±0.1 | 2.5 ±0.2 | ○ | AR1H066310 | AR1H066330 | |||
| 7.6 | 7.25 | 76.7 ～ 88.2 | 0.95 ±0.1 | 3.3 ±0.2 | ○ | AR1H076310 | AR1H076330 | |||
| 8.6 | 8.25 | 87.6 ～ 100.8 | 1.06 ±0.1 | 3.6 ±0.2 | ○ | AR1H086310 | AR1H086330 | |||
| 9.6 | 9.25 | 98.6 ～ 113.4 | 1.18 ±0.2 | 4.2 ±0.2 | ○ | AR1H096310 | AR1H096330 | |||
| 10.6 | 10.25 | 109.6 ～ 126.0 | 1.30 ±0.2 | 4.6 ±0.2 | ○ | AR1H106310 | AR1H106330 | |||
| 11.6 | 11.25 | 120.5 ～ 138.6 | 1.30 ±0.2 | 5.0 ±0.2 | ○ | AR1H116310 | AR1H116330 | |||
| 12.6 | 12.25 | 131.5 ～ 151.2 | 1.42 ±0.2 | 5.4 ±0.2 | ○ | AR1H126310 | AR1H126330 | |||
| 13.6 | 13.25 | 142.4 ～ 163.8 | 1.54 ±0.2 | 5.7 ±0.2 | ○ | AR1H136310 | AR1H136330 | |||
| 14.6 | 14.25 | 153.4 ～ 176.4 | 1.66 ±0.2 | 6.3 ±0.2 | ○ | AR1H146310 | AR1H146330 | |||
| 15.6 | 15.25 | 164.3 ～ 189.0 | 1.77 ±0.2 | 6.9 ±0.2 | ○ | AR1H156310 | AR1H156330 | |||
| 16.6 | 16.25 | 175.3 ～ 201.6 | 1.89 ±0.2 | 7.5 ±0.2 | ○ | AR1H166310 | AR1H166330 | |||
■油孔数：2
■螺旋角度：30° 直柄型钻头用
| 油孔数 | 螺旋角度 | 外径φD ※1 | 导程范围 | 油孔径φｄ | 油孔距 ａ | 材质 | 型号 | |||
| 沟顶径 | 沟底径 | AF 510 |
AF 810 |
L=310 | L=330 | |||||
| 2 | 30° 直柄型钻头用 |
3.6 | 3.3 | 15.7 ～ 17.0 | 0.47 ±0.05 | 1.50 0/-0.1 | ○ | ○ | ARH036310 | ARH036330 |
| 4.6 | 4.3 | 20.9 ～ 22.7 | 0.59 +0.05/-0.1 | 1.7 0/-0.2 | ○ | ○ | ARH046310 | ARH046330 | ||
| 5.6 | 5.3 | 26.2 ～ 28.4 | 0.71 ±0.1 | 2.4 0/-0.3 | ○ | ○ | ARH056310 | ARH056330 | ||
| 6.6 | 6.3 | 31.4 ～ 34.0 | 0.83 ±0.1 | 2.8 ±0.2 | ○ | ○ | ARH066310 | ARH066330 | ||
| 7.6 | 7.3 | 36.6 ～ 39.7 | 0.95 ±0.1 | 3.2 ±0.2 | ○ | ○ | ARH076310 | ARH076330 | ||
| 8.6 | 8.3 | 41.9 ～ 45.4 | 1.06 ±0.1 | 3.6 ±0.2 | ○ | ○ | ARH086310 | ARH086330 | ||
| 9.6 | 9.3 | 47.1 ～ 51.0 | 1.18 ±0.2 | 4.0 ±0.2 | ○ | ○ | ARH096310 | ARH096330 | ||
| 10.6 | 10.3 | 52.3 ～ 56.7 | 1.30 ±0.2 | 4.4 ±0.2 | ○ | ○ | ARH106310 | ARH106330 | ||
| 11.6 | 11.3 | 57.5 ～ 62.4 | 1.30 ±0.2 | 4.4 ±0.2 | ○ | ○ | ARH116310 | ARH116330 | ||
| 12.6 | 12.3 | 62.8 ～ 68.1 | 1.42 ±0.2 | 4.8 ±0.2 | ○ | ○ | ARH126310 | ARH126330 | ||
| 13.6 | 13.3 | 68.0 ～ 73.7 | 1.54 ±0.2 | 5.2 ±0.2 | ○ | ○ | ARH136310 | ARH136330 | ||
| 14.6 | 14.3 | 73.2 ～ 79.4 | 1.66 ±0.2 | 5.6 ±0.2 | ○ | ○ | ARH146310 | ARH146330 | ||
| 15.6 | 15.3 | 78.5 ～ 85.1 | 1.77 ±0.2 | 6.0 ±0.2 | ○ | ○ | ARH156310 | ARH156330 | ||
| 16.6 | 16.3 | 83.7 ～ 90.7 | 1.89 ±0.2 | 6.4 ±0.2 | ○ | ○ | ARH166310 | ARH166330 | ||
| 17.6 | 17.3 | 88.9 ～ 96.3 | 2.01 ±0.2 | 6.8 ±0.2 | ○ | ARH176310 | ARH176330 | |||
| 1.75 ±0.2 | 8.5 ±0.2 | ○ | ARH176310-1 | ARH176330-1 | ||||||
| 18.6 | 18.3 | 94.1 ～ 102.0 | 2.13 ±0.2 | 7.2 ±0.2 | ○ | ARH186310 | ARH186330 | |||
| 2.00 ±0.2 | 9.2 ±0.2 | ○ | ARH186310-1 | ARH186330-1 | ||||||
| 19.6 | 19.3 | 99.3 ～ 107.7 | 2.28 ±0.2 | 7.6 ±0.2 | ○ | ARH196310 | ARH196330 | |||
| 2.00 ±0.2 | 9.7 ±0.2 | ○ | ARH196310-1 | ARH196330-1 | ||||||
| 20.6 | 20.3 | 104.6 ～ 113.4 | 2.36 ±0.2 | 8.0 ±0.2 | ○ | ARH206310 | ARH206330 | |||
| 2.00 ±0.2 | 9.9 ±0.2 | ○ | ARH206310-1 | ARH206330-1 | ||||||
■油孔数：2
■螺旋角度：30° 阶梯型钻头用
| 油孔数 | 螺旋角度 | 外径φD ※1 | 导程范围 | 油孔径φｄ | 油孔距 ａ | 材质 | 型号 | |||
| 沟顶径 | 沟底径 | AF 510 |
AF 810 |
L=310 | L=330 | |||||
| 230° 阶梯型钻头用 |
3.6 | 3.3 | 15.7 ～ 17.0 | 0.23 ±0.05 | 0.8 -0.1/-0.2 | ○ | ○ | ARD036310-1 | ARD036330-1 | |
| 15.7 ～ 17.0 | 0.35 ±0.05 | 1.2 0/-0.2 | ○ | ○ | ARD036310-2 | ARD036330-2 | ||||
| 4.6 | 4.3 | 20.9 ～ 22.7 | 0.35 ±0.05 | 1.2 0/-0.2 | ○ | ○ | ARD046310 | ARD046330 | ||
| 5.6 | 5.3 | 26.2 ～ 28.4 | 0.47 ±0.05 | 1.5 0/-0.3 | ○ | ○ | ARD056310 | ARD056330 | ||
| 6.6 | 6.3 | 31.4 ～ 34.0 | 0.47 ±0.1 | 2.0 ±0.2 | ○ | ○ | ARD066310 | ARD066330 | ||
| 7.6 | 7.3 | 36.6 ～ 39.7 | 0.59 ±0.1 | 2.0 ±0.2 | ○ | ○ | ARD076310 | ARD076330 | ||
| 8.6 | 8.3 | 41.9 ～ 45.4 | 0.71 ±0.1 | 2.4 ±0.2 | ○ | ○ | ARD086310 | ARD086330 | ||
| 9.6 | 9.3 | 47.1 ～ 51.0 | 0.83 ±0.1 | 2.8 ±0.2 | ○ | ○ | ARD096310 | ARD096330 | ||
| 10.6 | 10.3 | 52.3 ～ 56.7 | 0.95 ±0.1 | 3.2 ±0.2 | ○ | ○ | ARD106310 | ARD106330 | ||
| 11.6 | 11.3 | 57.5 ～ 62.4 | 0.95 ±0.1 | 3.2 ±0.2 | ○ | ○ | ARD116310 | ARD116330 | ||
| 12.6 | 12.3 | 62.8 ～ 68.1 | 1.06 ±0.1 | 3.6 ±0.2 | ○ | ○ | ARD126310 | ARD126330 | ||
| 13.6 | 13.3 | 68.0 ～ 73.7 | 1.06 ±0.1 | 3.6 ±0.2 | ○ | ○ | ARD136310 | ARD136330 | ||
| 14.6 | 14.3 | 73.2 ～ 79.4 | 1.18 ±0.2 | 4.0 ±0.2 | ○ | ○ | ARD146310 | ARD146330 | ||
| 15.6 | 15.3 | 78.5 ～ 85.1 | 1.30 ±0.2 | 4.4 ±0.2 | ○ | ○ | ARD156310 | ARD156330 | ||
| 16.6 | 16.3 | 83.7 ～ 90.7 | 1.42 ±0.2 | 4.8 ±0.2 | ○ | ○ | ARD166310 | ARD166330 | ||
■油孔数：2
■螺旋角度：42° 阶梯型钻头用
| 油孔数 | 螺旋角度 | 外径φD ※1 | 导程范围 | 油孔径φｄ | 油孔距 ａ | 材质 | 型号 | |||
| 沟顶径 | 沟底径 | AF 510 |
AF 810 |
L=310 | L=330 | |||||
| 2 | 42° | 3.6 | 3.2 | 10.1 ～ 10.8 | 0.20 ±0.05 | 0.5 ±0.05 | ○ | AR4H036310-1 | AR4H036330-1 | |
| 3.2 | 10.1 ～ 10.8 | 0.14 ±0.03 | 0.5 0/-0.1 | ○ | AR4H036310-2 | AR4H036330-2 | ||||
■油孔数：3
■螺旋角度：30°
| 油孔数 | 螺旋角度 | 外径φD ※1 | 导程范围 | 油孔径φｄ | 油孔距 ａ | 材质 | 型号 | |||
| 沟顶径 | 沟底径 | AF 510 |
AF 810 |
L=310 | L=330 | |||||
| 3 | 30° | 5.6 | 5.3 | 26.2 ～ 28.4 | 0.40 ±0.05 | 2.8 0/-0.3 | ○ | ARZ056310 | ARZ056330 | |
| 6.6 | 6.3 | 31.4 ～ 34.0 | 0.50 ±0.05 | 3.4 ±0.2 | ○ | ARZ066310 | ARZ066330 | |||
| 7.6 | 7.3 | 36.6 ～ 39.7 | 0.59 ±0.10 | 4.0 ±0.2 | ○ | ARZ076310 | ARZ076330 | |||
| 8.6 | 8.3 | 41.9 ～ 45.4 | 0.65 ±0.10 | 4.6 ±0.2 | ○ | ARZ086310 | ARZ086330 | |||
| 9.6 | 9.3 | 47.1 ～ 51.0 | 0.77 ±0.20 | 5.3 ±0.2 | ○ | ARZ096310 | ARZ096330 | |||
| 10.6 | 10.3 | 52.3 ～ 56.7 | 0.85 ±0.20 | 6.0 ±0.2 | ○ | ARZ106310 | ARZ106330 | |||
| 11.6 | 11.3 | 57.5 ～ 62.4 | 0.94 ±0.20 | 6.7 ±0.2 | ○ | ARZ116310 | ARZ116330 | |||
| 12.6 | 12.3 | 62.8 ～ 68.1 | 1.03 ±0.20 | 7.4 ±0.2 | ○ | ARZ126310 | ARZ126330 | |||
| 13.6 | 13.3 | 68.0 ～ 73.7 | 1.11 ±0.20 | 8.2 ±0.2 | ○ | ARZ136310 | ARZ136330 | |||
| 14.6 | 14.3 | 73.2 ～ 79.4 | 1.20 ±0.20 | 9.0 ±0.2 | ○ | ARZ146310 | ARZ146330 | |||
| 15.6 | 15.3 | 78.5 ～ 85.1 | 1.28 ±0.20 | 9.8 ±0.2 | ○ | ARZ156310 | ARZ156330 | |||
| 16.6 | 16.3 | 83.7 ～ 90.7 | 1.37 ±0.20 | 10.6 ±0.2 | ○ | ARZ166310 | ARZ166330 | |||
