产品优点/特性

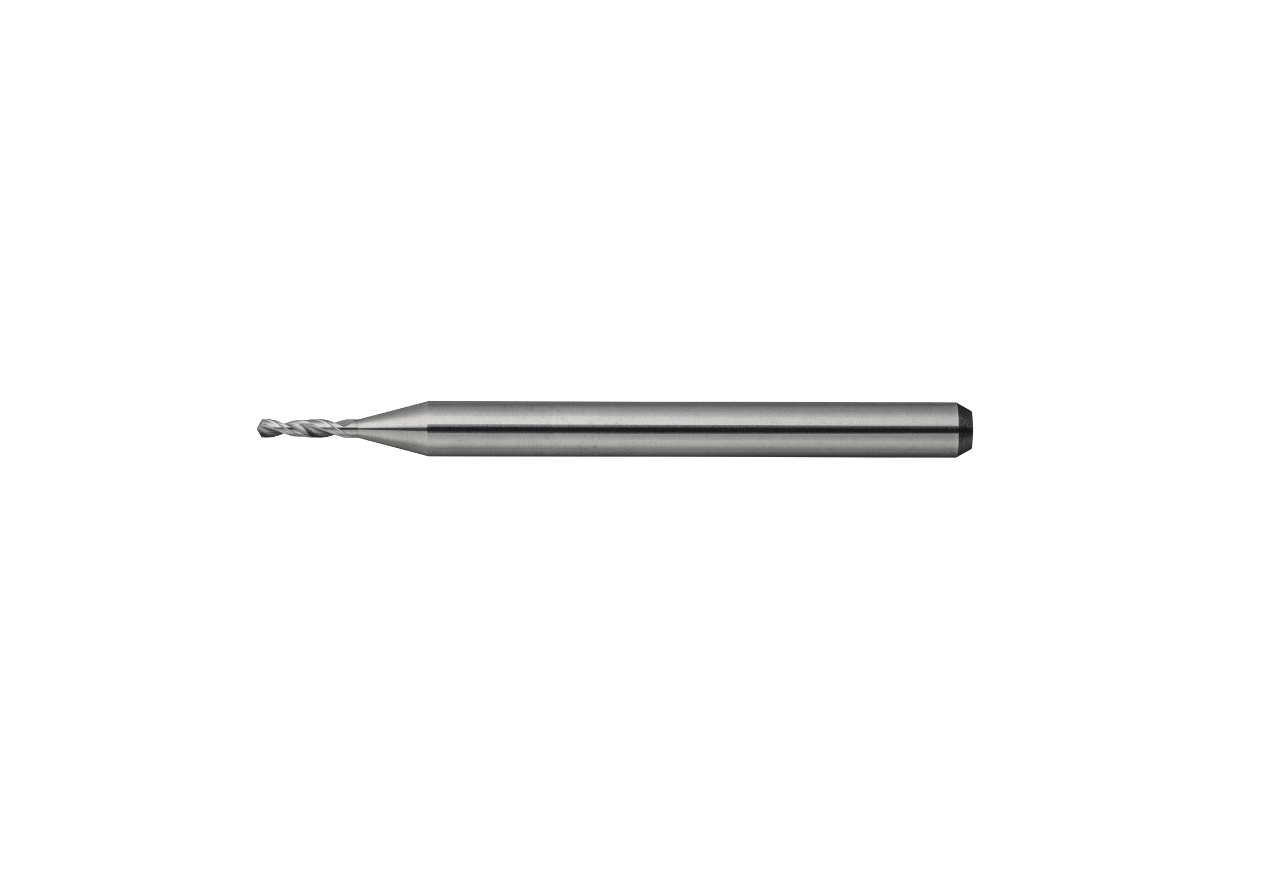

使用最适合钻精密小孔的涂层，钢材细孔连续加工专用钻头
■ 最小加工刃径可达φ0.1mm
■ 刃径公差：+0~ ─0.005
■ 应用范围广泛，涵盖钢铁、有色金属和树脂等材质加工
■ φ1.6mm以上使用边缘研磨加工技术，增加使用寿命
寿命比较
产品说明
岳崴科技自2011年起代理斋藤制作所ATOM旗下产品-钨钢钻头，除自有应用工程师外，亦有原厂技术支援，遇到特殊加工材，可将工件提供给我们，于原厂加工完成后，再提供完整加工方案，解决客户来回寄送测试品的困扰。
材質規格
材质为硬质合金，顾名思义，是一种非常坚硬的金属，由硬质合金碳化物粉末烧结而成。作为特征，HRA硬度约为90，强度高，杨氏模量约为铁的3倍，重量约为铁的2倍。为一体成形全钨钢材质钻头
加工用途： ATOM产品广泛应用于各种领域，包括半导体的探针、汽车工业的注射活塞、电子零件-弱电的连接器轴、纤维的喷嘴、文具中的圆珠笔、模具的冲孔、医疗设备……等。
| micro drill short flute length | |||
| ADRS | |||
| 单位：mm | |||
| 规格名称 | 直径 | 刃长 | 全长 |
| ADRS-0010 | 0.1 | 0.6 | 38 |
| ADRS-0011 | 0.11 | 0.6 | 38 |
| ADRS-0012 | 0.12 | 0.6 | 38 |
| ADRS-0013 | 0.13 | 0.6 | 38 |
| ADRS-0014 | 0.14 | 0.6 | 38 |
| ADRS-0015 | 0.15 | 0.8 | 38 |
| ADRS-0016 | 0.16 | 0.8 | 38 |
| ADRS-0017 | 0.17 | 0.8 | 38 |
| ADRS-0018 | 0.18 | 1 | 38 |
| ADRS-0019 | 0.19 | 1 | 38 |
| ADRS-0020 | 0.2 | 1 | 38 |
| ADRS-0021 | 0.21 | 1 | 38 |
| ADRS-0022 | 0.22 | 1.2 | 38 |
| ADRS-0023 | 0.23 | 1.2 | 38 |
| ADRS-0024 | 0.24 | 1.2 | 38 |
| ADRS-0025 | 0.25 | 1.5 | 38 |
| ADRS-0026 | 0.26 | 1.5 | 38 |
| ADRS-0027 | 0.27 | 1.5 | 38 |
| ADRS-0028 | 0.28 | 1.5 | 38 |
| ADRS-0029 | 0.29 | 1.5 | 38 |
| ADRS-0030 | 0.3 | 2.5 | 38 |
| ADRS-0031 | 0.31 | 2.5 | 38 |
| ADRS-0032 | 0.32 | 2.5 | 38 |
| ADRS-0033 | 0.33 | 2.5 | 38 |
| ADRS-0034 | 0.34 | 2.5 | 38 |
| ADRS-0035 | 0.35 | 2.5 | 38 |
| ADRS-0036 | 0.36 | 2.5 | 38 |
| ADRS-0037 | 0.37 | 2.5 | 38 |
| ADRS-0038 | 0.38 | 2.5 | 38 |
| ADRS-0039 | 0.39 | 2.5 | 38 |
| ADRS-0040 | 0.4 | 3 | 38 |
| ADRS-0041 | 0.41 | 3 | 38 |
| ADRS-0042 | 0.42 | 3 | 38 |
| ADRS-0043 | 0.43 | 3 | 38 |
| ADRS-0044 | 0.44 | 3 | 38 |
| ADRS-0045 | 0.45 | 3 | 38 |
| ADRS-0046 | 0.46 | 3 | 38 |
| ADRS-0047 | 0.47 | 3 | 38 |
| ADRS-0048 | 0.48 | 3 | 38 |
| ADRS-0049 | 0.49 | 3 | 38 |
| ADRS-0050 | 0.5 | 3 | 38 |
| ADRS-0051 | 0.51 | 3 | 38 |
| ADRS-0052 | 0.52 | 3 | 38 |
| ADRS-0053 | 0.53 | 3 | 38 |
| ADRS-0054 | 0.54 | 3 | 38 |
| ADRS-0055 | 0.55 | 3 | 38 |
| ADRS-0056 | 0.56 | 3 | 38 |
| ADRS-0057 | 0.57 | 3 | 38 |
| ADRS-0058 | 0.58 | 3 | 38 |
| ADRS-0059 | 0.59 | 3 | 38 |
| ADRS-0060 | 0.6 | 3 | 38 |
| ADRS-0061 | 0.61 | 3 | 38 |
| ADRS-0062 | 0.62 | 3 | 38 |
| ADRS-0063 | 0.63 | 3 | 38 |
| ADRS-0064 | 0.64 | 3 | 38 |
| ADRS-0065 | 0.65 | 3 | 38 |
| ADRS-0066 | 0.66 | 3 | 38 |
| ADRS-0067 | 0.67 | 3 | 38 |
| ADRS-0068 | 0.68 | 3 | 38 |
| ADRS-0069 | 0.69 | 3 | 38 |
| ADRS-0070 | 0.7 | 4 | 38 |
| ADRS-0071 | 0.71 | 4 | 38 |
| ADRS-0072 | 0.72 | 4 | 38 |
| ADRS-0073 | 0.73 | 4 | 38 |
| ADRS-0074 | 0.74 | 4 | 38 |
| ADRS-0075 | 0.75 | 4 | 38 |
| ADRS-0076 | 0.76 | 4 | 38 |
| ADRS-0077 | 0.77 | 4 | 38 |
| ADRS-0078 | 0.78 | 4 | 38 |
| ADRS-0079 | 0.79 | 4 | 38 |
| ADRS-0080 | 0.8 | 4 | 38 |
| ADRS-0081 | 0.81 | 4 | 38 |
| ADRS-0082 | 0.82 | 4 | 38 |
| ADRS-0083 | 0.83 | 4 | 38 |
| ADRS-0084 | 0.84 | 4 | 38 |
| ADRS-0085 | 0.85 | 4 | 38 |
| ADRS-0086 | 0.86 | 4 | 38 |
| ADRS-0087 | 0.87 | 4 | 38 |
| ADRS-0088 | 0.88 | 4 | 38 |
| ADRS-0089 | 0.89 | 4 | 38 |
| ADRS-0090 | 0.9 | 4 | 38 |
| ADRS-0091 | 0.91 | 4 | 38 |
| ADRS-0092 | 0.92 | 4 | 38 |
| ADRS-0093 | 0.93 | 4 | 38 |
| ADRS-0094 | 0.94 | 4 | 38 |
| ADRS-0095 | 0.95 | 4 | 38 |
| ADRS-0096 | 0.96 | 4 | 38 |
| ADRS-0097 | 0.97 | 4 | 38 |
| ADRS-0098 | 0.98 | 4 | 38 |
| ADRS-0099 | 0.99 | 4 | 38 |
| ADRS-0100 | 1 | 5 | 38 |
| ADRS-0101 | 1.01 | 5 | 38 |
| ADRS-0102 | 1.02 | 5 | 38 |
| ADRS-0103 | 1.03 | 5 | 38 |
| ADRS-0104 | 1.04 | 5 | 38 |
| ADRS-0105 | 1.05 | 5 | 38 |
| ADRS-0106 | 1.06 | 5 | 38 |
| ADRS-0107 | 1.07 | 5 | 38 |
| ADRS-0108 | 1.08 | 5 | 38 |
| ADRS-0109 | 1.09 | 5 | 38 |
| ADRS-0110 | 1.1 | 5 | 38 |
| ADRS-0111 | 1.11 | 5 | 38 |
| ADRS-0112 | 1.12 | 5 | 38 |
| ADRS-0113 | 1.13 | 5 | 38 |
| ADRS-0114 | 1.14 | 5 | 38 |
| ADRS-0115 | 1.15 | 5 | 38 |
| ADRS-0116 | 1.16 | 5 | 38 |
| ADRS-0117 | 1.17 | 5 | 38 |
| ADRS-0118 | 1.18 | 5 | 38 |
| ADRS-0119 | 1.19 | 5 | 38 |
| ADRS-0120 | 1.2 | 5 | 38 |
| ADRS-0121 | 1.21 | 5 | 38 |
| ADRS-0122 | 1.22 | 5 | 38 |
| ADRS-0123 | 1.23 | 5 | 38 |
| ADRS-0124 | 1.24 | 5 | 38 |
| ADRS-0125 | 1.25 | 5 | 38 |
| ADRS-0126 | 1.26 | 5 | 38 |
| ADRS-0127 | 1.27 | 5 | 38 |
| ADRS-0128 | 1.28 | 5 | 38 |
| ADRS-0129 | 1.29 | 5 | 38 |
| ADRS-0130 | 1.3 | 5 | 38 |
| ADRS-0131 | 1.31 | 5 | 38 |
| ADRS-0132 | 1.32 | 5 | 38 |
| ADRS-0133 | 1.33 | 5 | 38 |
| ADRS-0134 | 1.34 | 5 | 38 |
| ADRS-0135 | 1.35 | 5 | 38 |
| ADRS-0136 | 1.36 | 5 | 38 |
| ADRS-0137 | 1.37 | 5 | 38 |
| ADRS-0138 | 1.38 | 5 | 38 |
| ADRS-0139 | 1.39 | 5 | 38 |
| ADRS-0140 | 1.4 | 5 | 38 |
| ADRS-0141 | 1.41 | 5 | 38 |
| ADRS-0142 | 1.42 | 5 | 38 |
| ADRS-0143 | 1.43 | 5 | 38 |
| ADRS-0144 | 1.44 | 5 | 38 |
| ADRS-0145 | 1.45 | 5 | 38 |
| ADRS-0146 | 1.46 | 5 | 38 |
| ADRS-0147 | 1.47 | 5 | 38 |
| ADRS-0148 | 1.48 | 5 | 38 |
| ADRS-0149 | 1.49 | 5 | 38 |
| ADRS-0150 | 1.5 | 5 | 38 |
| ADRS-0151 | 1.51 | 5 | 38 |
| ADRS-0152 | 1.52 | 5 | 38 |
| ADRS-0153 | 1.53 | 5 | 38 |
| ADRS-0154 | 1.54 | 5 | 38 |
| ADRS-0155 | 1.55 | 5 | 38 |
| ADRS-0156 | 1.56 | 5 | 38 |
| ADRS-0157 | 1.57 | 5 | 38 |
| ADRS-0158 | 1.58 | 5 | 38 |
| ADRS-0159 | 1.59 | 5 | 38 |
| ADRS-0160 | 1.6 | 10 | 38 |
| ADRS-0161 | 1.61 | 10 | 38 |
| ADRS-0162 | 1.62 | 10 | 38 |
| ADRS-0163 | 1.63 | 10 | 38 |
| ADRS-0164 | 1.64 | 10 | 38 |
| ADRS-0165 | 1.65 | 10 | 38 |
| ADRS-0166 | 1.66 | 10 | 38 |
| ADRS-0167 | 1.67 | 10 | 38 |
| ADRS-0168 | 1.68 | 10 | 38 |
| ADRS-0169 | 1.69 | 10 | 38 |
| ADRS-0170 | 1.7 | 10 | 38 |
| ADRS-0171 | 1.71 | 10 | 38 |
| ADRS-0172 | 1.72 | 10 | 38 |
| ADRS-0173 | 1.73 | 10 | 38 |
| ADRS-0174 | 1.74 | 10 | 38 |
| ADRS-0175 | 1.75 | 10 | 38 |
| ADRS-0176 | 1.76 | 10 | 38 |
| ADRS-0177 | 1.77 | 10 | 38 |
| ADRS-0178 | 1.78 | 10 | 38 |
| ADRS-0179 | 1.79 | 10 | 38 |
| ADRS-0180 | 1.8 | 10 | 38 |
| ADRS-0181 | 1.81 | 10 | 38 |
| ADRS-0182 | 1.82 | 10 | 38 |
| ADRS-0183 | 1.83 | 10 | 38 |
| ADRS-0184 | 1.84 | 10 | 38 |
| ADRS-0185 | 1.85 | 10 | 38 |
| ADRS-0186 | 1.86 | 10 | 38 |
| ADRS-0187 | 1.87 | 10 | 38 |
| ADRS-0188 | 1.88 | 10 | 38 |
| ADRS-0189 | 1.89 | 10 | 38 |
| ADRS-0190 | 1.9 | 10 | 38 |
| ADRS-0191 | 1.91 | 10 | 38 |
| ADRS-0192 | 1.92 | 10 | 38 |
| ADRS-0193 | 1.93 | 10 | 38 |
| ADRS-0194 | 1.94 | 10 | 38 |
| ADRS-0195 | 1.95 | 10 | 38 |
| ADRS-0196 | 1.96 | 10 | 38 |
| ADRS-0197 | 1.97 | 10 | 38 |
| ADRS-0198 | 1.98 | 10 | 38 |
| ADRS-0199 | 1.99 | 10 | 38 |
| ADRS-0200 | 2 | 10 | 38 |
| ADRS-0201 | 2.01 | 10 | 38 |
| ADRS-0202 | 2.02 | 10 | 38 |
| ADRS-0203 | 2.03 | 10 | 38 |
| ADRS-0204 | 2.04 | 10 | 38 |
| ADRS-0205 | 2.05 | 10 | 38 |
| ADRS-0206 | 2.06 | 10 | 38 |
| ADRS-0207 | 2.07 | 10 | 38 |
| ADRS-0208 | 2.08 | 10 | 38 |
| ADRS-0209 | 2.09 | 10 | 38 |
| ADRS-0210 | 2.1 | 10 | 38 |
| ADRS-0211 | 2.11 | 10 | 38 |
| ADRS-0212 | 2.12 | 10 | 38 |
| ADRS-0213 | 2.13 | 10 | 38 |
| ADRS-0214 | 2.14 | 10 | 38 |
| ADRS-0215 | 2.15 | 10 | 38 |
| ADRS-0216 | 2.16 | 10 | 38 |
| ADRS-0217 | 2.17 | 10 | 38 |
| ADRS-0218 | 2.18 | 10 | 38 |
| ADRS-0219 | 2.19 | 10 | 38 |
| ADRS-0220 | 2.2 | 10 | 38 |
| ADRS-0221 | 2.21 | 10 | 38 |
| ADRS-0222 | 2.22 | 10 | 38 |
| ADRS-0223 | 2.23 | 10 | 38 |
| ADRS-0224 | 2.24 | 10 | 38 |
| ADRS-0225 | 2.25 | 10 | 38 |
| ADRS-0226 | 2.26 | 10 | 38 |
| ADRS-0227 | 2.27 | 10 | 38 |
| ADRS-0228 | 2.28 | 10 | 38 |
| ADRS-0229 | 2.29 | 10 | 38 |
| ADRS-0230 | 2.3 | 10 | 38 |
| ADRS-0231 | 2.31 | 10 | 38 |
| ADRS-0232 | 2.32 | 10 | 38 |
| ADRS-0233 | 2.33 | 10 | 38 |
| ADRS-0234 | 2.34 | 10 | 38 |
| ADRS-0235 | 2.35 | 10 | 38 |
| ADRS-0236 | 2.36 | 10 | 38 |
| ADRS-0237 | 2.37 | 10 | 38 |
| ADRS-0238 | 2.38 | 10 | 38 |
| ADRS-0239 | 2.39 | 10 | 38 |
| ADRS-0240 | 2.4 | 10 | 38 |
| ADRS-0241 | 2.41 | 10 | 38 |
| ADRS-0242 | 2.42 | 10 | 38 |
| ADRS-0243 | 2.43 | 10 | 38 |
| ADRS-0244 | 2.44 | 10 | 38 |
| ADRS-0245 | 2.45 | 10 | 38 |
| ADRS-0246 | 2.46 | 10 | 38 |
| ADRS-0247 | 2.47 | 10 | 38 |
| ADRS-0248 | 2.48 | 10 | 38 |
| ADRS-0249 | 2.49 | 10 | 38 |
| ADRS-0250 | 2.5 | 10 | 38 |
| ADRS-0251 | 2.51 | 10 | 38 |
| ADRS-0252 | 2.52 | 10 | 38 |
| ADRS-0253 | 2.53 | 10 | 38 |
| ADRS-0254 | 2.54 | 10 | 38 |
| ADRS-0255 | 2.55 | 10 | 38 |
| ADRS-0256 | 2.56 | 10 | 38 |
| ADRS-0257 | 2.57 | 10 | 38 |
| ADRS-0258 | 2.58 | 10 | 38 |
| ADRS-0259 | 2.59 | 10 | 38 |
| ADRS-0260 | 2.6 | 10 | 38 |
| ADRS-0261 | 2.61 | 10 | 38 |
| ADRS-0262 | 2.62 | 10 | 38 |
| ADRS-0263 | 2.63 | 10 | 38 |
| ADRS-0264 | 2.64 | 10 | 38 |
| ADRS-0265 | 2.65 | 10 | 38 |
| ADRS-0266 | 2.66 | 10 | 38 |
| ADRS-0267 | 2.67 | 10 | 38 |
| ADRS-0268 | 2.68 | 10 | 38 |
| ADRS-0269 | 2.69 | 10 | 38 |
| ADRS-0270 | 2.7 | 12 | 38 |
| ADRS-0271 | 2.71 | 12 | 38 |
| ADRS-0272 | 2.72 | 12 | 38 |
| ADRS-0273 | 2.73 | 12 | 38 |
| ADRS-0274 | 2.74 | 12 | 38 |
| ADRS-0275 | 2.75 | 12 | 38 |
| ADRS-0276 | 2.76 | 12 | 38 |
| ADRS-0277 | 2.77 | 12 | 38 |
| ADRS-0278 | 2.78 | 12 | 38 |
| ADRS-0279 | 2.79 | 12 | 38 |
| ADRS-0280 | 2.8 | 12 | 38 |
| ADRS-0281 | 2.81 | 12 | 38 |
| ADRS-0282 | 2.82 | 12 | 38 |
| ADRS-0283 | 2.83 | 12 | 38 |
| ADRS-0284 | 2.84 | 12 | 38 |
| ADRS-0285 | 2.85 | 12 | 38 |
| ADRS-0286 | 2.86 | 12 | 38 |
| ADRS-0287 | 2.87 | 12 | 38 |
| ADRS-0288 | 2.88 | 12 | 38 |
| ADRS-0289 | 2.89 | 12 | 38 |
| ADRS-0290 | 2.9 | 12 | 38 |
| ADRS-0291 | 2.91 | 12 | 38 |
| ADRS-0292 | 2.92 | 12 | 38 |
| ADRS-0293 | 2.93 | 12 | 38 |
| ADRS-0294 | 2.94 | 12 | 38 |
| ADRS-0295 | 2.95 | 12 | 38 |
| ADRS-0296 | 2.96 | 12 | 38 |
| ADRS-0297 | 2.97 | 12 | 38 |
| ADRS-0298 | 2.98 | 12 | 38 |
| ADRS-0299 | 2.99 | 12 | 38 |
| ADRS-0300 | 3 | 12 | 38 |
